There seems to be alot of confusion when it comes to 1970-1974 E body radios . I have created this page
in an effort to
educate the general public about how to easily identify a genuine Barracuda / Challenger radio , and
not get stuck paying big bucks for a common C body or Truck radio ,which can look "simular" . Here are some
tips you should know . First, All E body radios will have the antenna port located on the bottom
of the radio . C &
B body and Truck radios will have the antenna port on the back or the side, never the bottom. Antenna port on the bottom is
a feature unique to E body radios only. The next unique feature can be seen when looking at the front of the radio. Notice
in the pictures below , the front metal face of the radio. Look toward the bottom . In the lower corners you will see two
small "platforms" extending outward , with the alignment pins in the middle. Notice the "platform" on
the left is a rectangle shape , and the one on the right is a square shape. ALL E-body radios have this feature , and
ONLY E body radios have these . This is the easiest way to identify a true E body radio. It does not matter if it is an AM,
AM 8-Track thumbwheel, AM FM Thumbwheel, or AM FM knob style. If it's an E body, it will have a small rectangular
platform on the left, and a square on the right . Study the pictures below and see exactly what you just read .Commit
that fact to memory, and you will be ok at the swap meet , or e-bay .

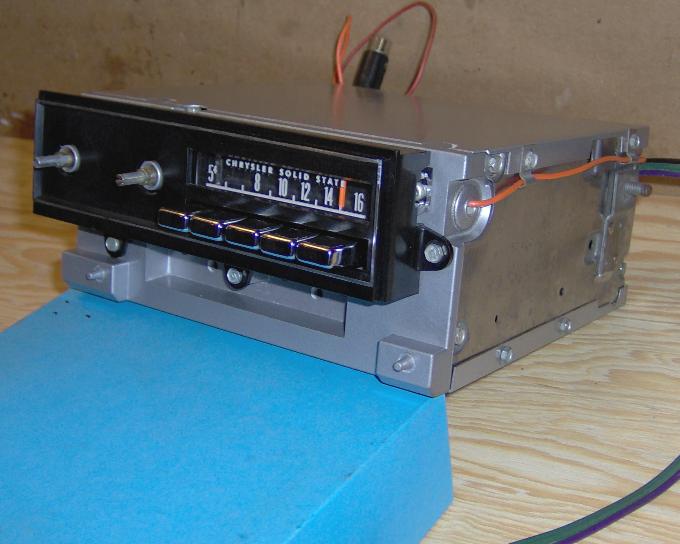

Here we have a 1970-71 AM . Notice the station preset buttons
are Chrome . ALL 70 , and most , if not
all 71 radios will have chrome
Next up, we have a 1970 AM 8-track. This radio is unique to 1970 only. This is the only year an 8-track
was available in an E body. Part number 2884 610 .Also notice, this is AM only.
There never was an AM FM 8-track available
for E bodies, ever. Period. Those
AM FM 8-track radios you see on e-bay are in fact C body radios.
Now we have a 70-71 AM FM . Notice this is a thumbwheel radio. All 70-71 E body AM FMs are thumbwheel
style. There are actually 2 different model designes , however, they are visually identical from the front. The 70 model used
a Phillips radio,
part# 2884658 and 71 used the Motorola unit you see here, part # 3501050,
easily identifiable as the 71 unit by the cassette lead on back. All E body AM FMs
as well as AM 8-tracks
are stereo units, and require a 3 speaker dash and crossover box (located behind glove box/ we service these as well).

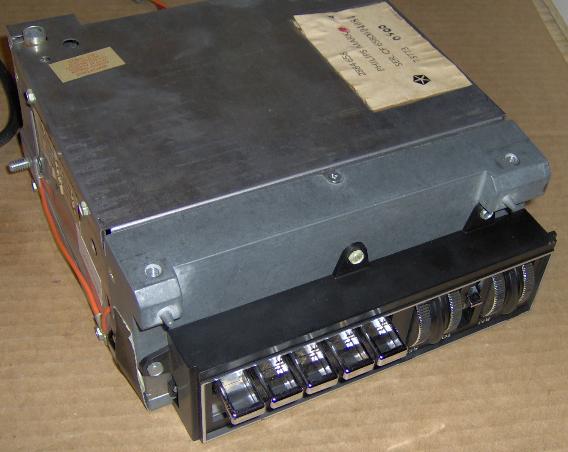

This is the bottom side of a 1970 Phillips AM FM # 2884658 . Notice the Antenna port is located on the bottom of the radio
. This holds true for ALL E body radios 1970-1974 . Also note the unique location of the mounting bolt holes at the bottom
front of the radio .
Pictured above is a VERY RARE 1971 AM with cassette lead .

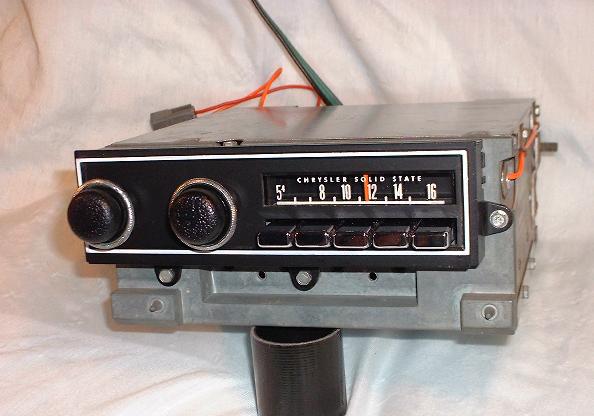

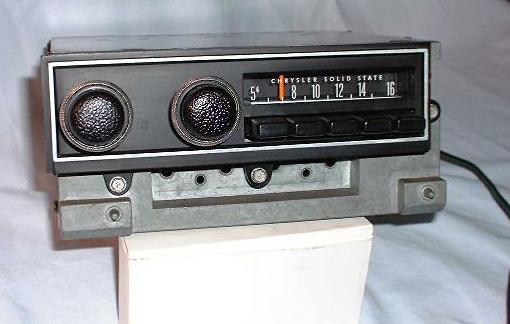

This is a 72-74 AM. Notice the black preset buttons . Chrome buttons were found on 70-71 Only. Also
please note, although the AM FMs and AM 8-tracks were thumbwheel designes in 70 (71) , the AM is always going to be a knob

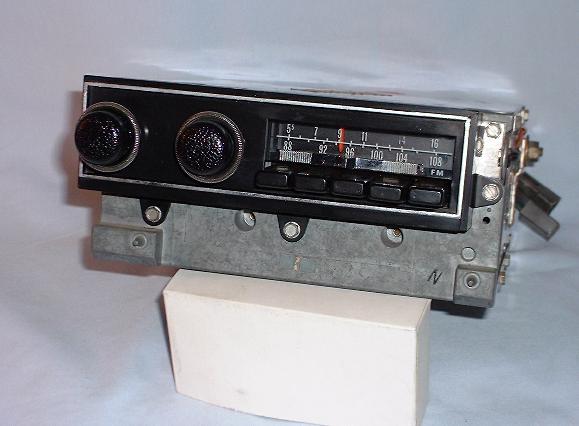

And finally, we have a 72-74 AM FM. Knob style, with black buttons of course.
And there you have
the entire E body radio lineup, from 1970-1974.
This is a 1970 8-track bezel . This particular one is correct for Barracuda.
Notice the "character
line" which follows the contours of the character line found
in the dash pad. The Challenger bezel lacks
